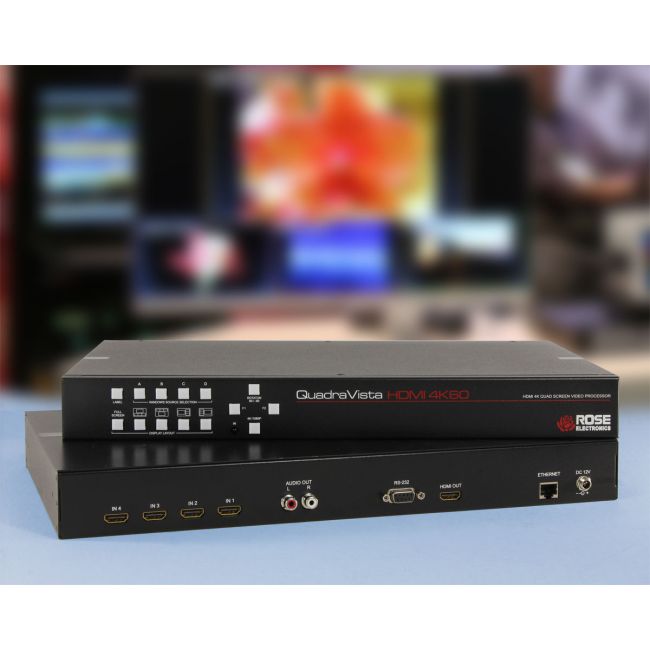

QuadraVista HDMI 4K60

Multiviewer • 4K60 • Front panel presets

The QuadraVista HDMI-4K60 is a multifunction Digital Video Switch and Video Controller that can process a mix of digital video inputs for display in single or quad-screen format, on an Ultra High Definition video display monitor.

This allows for the perfect display of real time video and animated displays, simulation graphics and highly detailed CAD design.

Featuring a 4K2K60 4:4:4 output resolution, the video output can be displayed as a single video source output on a full-screen, or as a mixed quad video display from four video sources displayed in quad-screen mode. In quad screen mode, the 4 quadrants can be of equal size, or else resized, scaled and repositioned anywhere on the screen.

Multiple video input modes up to 1920*1200/60Hz are supported, including 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz and 1920x1080/60Hz.

-
Inkl. 19% MwSt., exkl. Versandkosten
Artikelnummer
QV-4x1HM-4K60
  • Displays up to four HDMI video sources on a single monitor
  • Input resolutions from 640×480@60Hz to 1920×1200@60Hz
  • Supports HDMI 2.0 output resolution up to 4K2K@60Hz (4:4:4 8 bits)
  • Window size and position are software adjustable
  • HDCP 1.4 compliant
  • Analog stereo audio output
  • Output display parameters such as layout, resolution, titles, and borders are software controllable
  • Up to eight different layouts can be saved
  • Resize, position, zoom, pan, and blend output video
  • Configure output through RS-232 or Ethernet
  • 28 key IR remote control
  • Rotation of input image by +90º or -90º
  • Supports pixel by pixel mapping in a 2 x 2 configuration
  • Automatically upscale 1920×1080@60Hz output resolution to 4K2K
  • Two EDID selections, and custom EDID can be loaded from file
  • Firmware updates via configuration software
  • Software management package included with the product

SPECIFICATIONS

Dimensions

(W x D x H)

15.3" x 8.8" x 1.6" (3(0 x 224 x 42 mm) 1U
Weight 5.2 lb (2.4 kg)
Power 100-240 VAC 50-60HzExternal adapter, +12V DC, 5A9W
Resolution HDMI Input: 1920 x 1200/60HzHDMI Output: Up to 4K2K@60Hz (4:4:4. 8 bits)
Distance CPU/Switch: 10 feet (3m)
Connectors Computer ports:4 x HDMI video in: HDMI Type AConsole port:1 x HDMI video out: HDMI Type AStereo Audio: 3.5mm jack (L/R)Other:Network: RJ45 EthernetSerial RS232 (D9F)Power: 12V,5A
Controls via included software
Environment Operating temperature: 32°F–104°F (0°C–40°C)Storage temperature: -4°F–140°F (-20°C–60°C)Relative humidity: 20%–90%, non-condensing
Weitere Informationen
Artikelnummer QV-4x1HM-4K60
