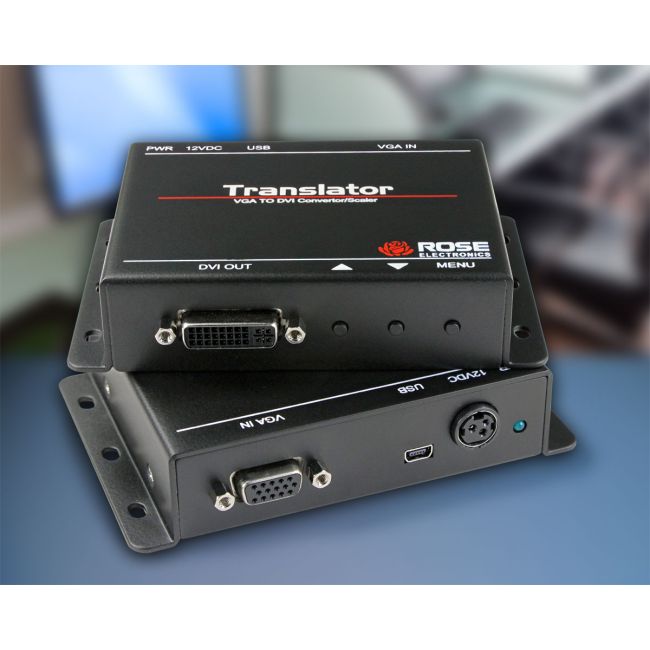

Translator VGA to DVI

Converts VGA Video In to DVI Video Out

The VGA to DVI converter is a highly functional product which accepts an analog video input signal and converts it to a digital DVI output that can be connected an LCD monitor, television, projector or other digital display. The product auto-detects the input resolution and native resolution of the output display and scales the input to fill the screen.

The converter will accept input with a maximum resolution of 1920 x 1200 from the following sources:

  • VGA analog signals from computer or laptop graphics cards
  • RGB component video sources from devices such as DVD players and set top boxes

With the easy-to-use on-screen menu, you can make custom adjustments if the default settings are not suitable. With the PC Menu, you can change the contrast, brightness, h-position, v-position, clock, phase, and scale. The scale setting options are Full, Overscan, Underscan, Letterbox-Underscan, PanScan-Underscan, Letterbox-Full, and PanScan-Full. Using the Color Menu, you can change the color temperature of the input to give a warmer or cooler look.

Through the Output Menu you can select the output to be either analog (VGA) or digital (DVI) and a variety of output resolutions. The output resolution is normally auto-detected using the native resolution of the DVI display, but you can force it to a wide range of settings with maximum resolutions of 1920 x 1200 and 2048 x 1024. There is also a provision for changing the OSD appearance.

-
Inkl. 19% MwSt., exkl. Versandkosten
Artikelnummer
Translator VGA to DVI
  • VGA or RGB component video input resolution up to 1920 x 1200
  • Output is DVI or VGA at maximum resolution of 2048 x 1080
  • Scaling feature supports different input and output resolutions
  • Automatically detects the input resolution
  • Has 48MB buffer for scaling and frame rate conversion
  • Built-in OSD function simplifies setup

SPECIFICATIONS

Dimensions

(W x D x H)

4" x 5.75" x 1" (101 x 147 x 25.4 mm)
Weight 0.65 lb (0.3 kg)
Power 90-240 VAC 50-60HzExternal adapter, 5V, 2A10W
Resolution 1920 x 1200
Distance Video: 25 feet (7.6m)
Connectors Video in: HD15 maleVideo out: DVI femalePower: Barrel jack
Controls Unit power: Red LEDOSD control: 3 push-buttons
Environment Operating temperature: 32°F–122°F (0°C–50°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 5%–80%, non-condensing
Weitere Informationen
Artikelnummer Translator VGA to DVI
