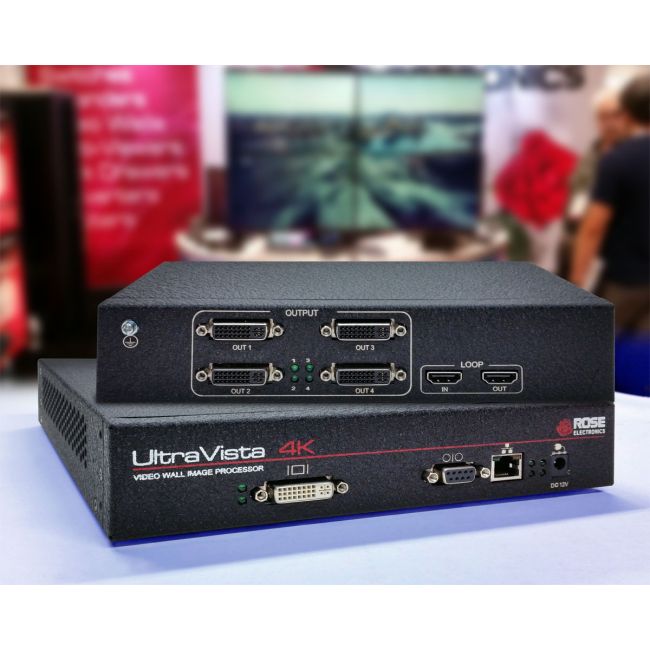

UltraVista 4K
UHD Video Wall Controller • 4K30
The UltraVista 4K Video Image Processor is a state of the art tool for creating multiple screen video displays. Its three models are designed to support high-resolution video input from any of three video signal types: dual link DVI, HDMI 1.4, or DisplayPort 1.1a and output via DVI-I to either DVI or VGA monitors, at video resolutions up to 1920x1200. Use of 4K video input helps ensure crystal-clear HD output to four DVI displays.
The cascade option, available for each product, enables the configuration of additional UltraVista 4K units required for assembling a larger video wall. The cascade port (In/Out) has an HDMI interface and transmits video at full video resolution.
Each input can independently support a vertical or horizontal positioned output display monitor with image rotation of 90°, 180° or 270°.
- Real time 4K video image collection and processing
- Three models: DVI, HDMI, or DisplayPort inputs, each supporting 4K UHD video
- Each model has four DVI-I outputs with 1920x1080p (HD) and 1920x1200 (PC) resolution
- EDID management allows non-standard input resolutions
- Bezel compensation and overlap creation
- Multiple device cascading supports larger video wall systems
- Image rotation of 90°, 180° or 270°
SPECIFICATIONS
|
Dimensions (W x D x H) |
8.85" x 7.87" x 1.76" (225 x 200 x 45 mm) |
| Weight | 3 lb (1.4 kg) |
| Power | 100-240 VAC 50-60HzExternal adapter, +12V DC, 3.3ADVI: 40W |
| Resolution | Dual-link DVI input:4096*2160@30Hz 3840*2400@30Hz, 3840*2160@30Hz 1920*2160@60Hz, 2560*1600@60Hz.HDMI input: 4096*2160@30Hz 3840*2400@25Hz 3840*2160@30Hz, 3840*2160@25Hz 2560*1600@60Hz, 1920*2160@60Hz 1920*2160@50HzDisplayPort input: 3840*2400@30Hz 3840*2160@30Hz, 2560*1600@60HzAll Models: Single-link DVI-I/VGA out:1920x1200/60Hz |
| Distance | Video: 25 feet (7.6m) |
| Connectors | DVI Model:Video in: DVIHDMI Model:Video in: HDMIDisplayPort Model:Video in: Display PortVideo Out - All Models:Four DVI-IPower: Barrel jackConfig: RS232 DB9, RJ45 Ethernet |
| Controls | Status LED: 4 LED's |
| Environment | Operating temperature: 32°F–104°F (0°C–40°C)Storage temperature: 14°F–140°F (-10°C–60°C)Relative humidity: 10%–90%, non-condensing |
| Artikelnummer | UltraVista 4K |
|---|
