TransVue HDMI 4K2K Scaler
Upscale and downscale HDMI 4K60 and 1080p
The HDMI 4K2K Scaler is an invaluable device for easily integrating 1080p video into HDMI 4K2K UltraHD system design or alternatively, integrating HDMI 4K2K video into 1080p system designs.

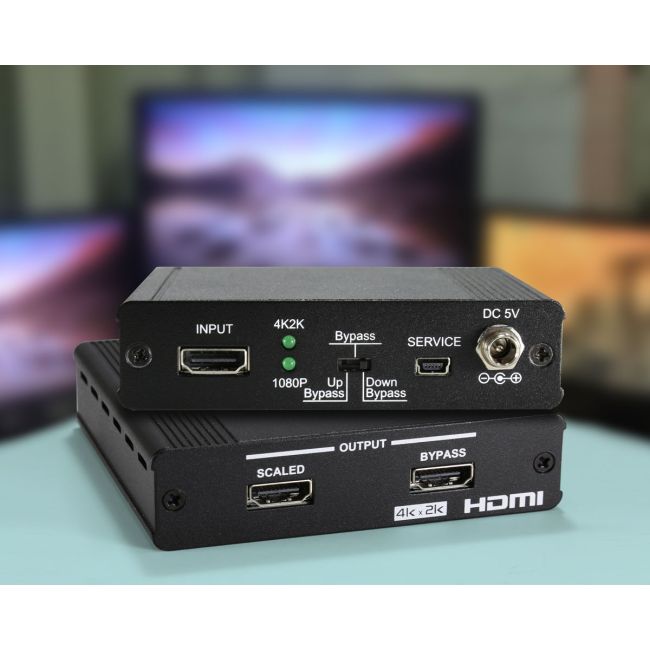

You can quickly set up this device to upscale or downscale between the HDMI HD2K and UltraHD 4K video formats. This compact 2-port device has one port for scaled video output and a second bypass port for unscaled native video output.
The bypass port enables the video input resolution to be viewed on a local monitor for comparison against the scaled video output. Both video output ports can be directly connected to monitors, or else to video extenders, matrix switches, video walls, multiviewers, or other video distribution systems.
- Upscales HDMI 1080p to 4K2K or downscales HDMI 4K2K to 1080p
- Easily integrate 4K2K video into an HDMI system design or integrate 1080p into a 4K2K system design
- Output an UltraHD HDMI source on a standard TV/monitor or an HDMI 1080p source on a 4K2K TV/flat panel display
- Splits the HDMI video input across two output ports, one scaled and the other unscaled
- Utilizes a bypass switch to assign the video input for either video upscaling or video downscaling
- Features HDCP and CEC support
- Indicator LED’s show the input signal as either 4K2K or 1080p
- Easy to install and use, just connect power supply (included) and HDMI cables
SPECIFICATIONS
|
Dimensions (W x D x H) |
4" x 4" x 1" (101.6 x 101.6 x 25.4 mm) |
| Weight | 0.6 lb (0.3 kg) |
| Power | 100-240 VAC 50-60HzExternal adapter, 5VDC 2.5A10W |
| Resolution | 1080p@25/25/30Hz4K2K supports 4096×2160p@24Hz and 3840×2160p@24/25/30Hz3D capable, but does not support 3D scaling |
| Distance | 5ft or 10ft HDMI cables recommended, maximum 15ft In/Out, 24/26AWG |
| Connectors | Input:1×HDMI Type A1×Mini USB service port1×5VDC power jackOutput:1×HDMI Type A scaled video port1× HDMI Type a bypass video port |
| Controls | Bypass switch |
| Environment | Operating temperature: 32°F–104°F (0°C–40°C)Storage temperature: -4°F–140°F (-20°C–60°C)Relative humidity: 20%–90%, non-condensing |
