VideoSplitter HDMI PT

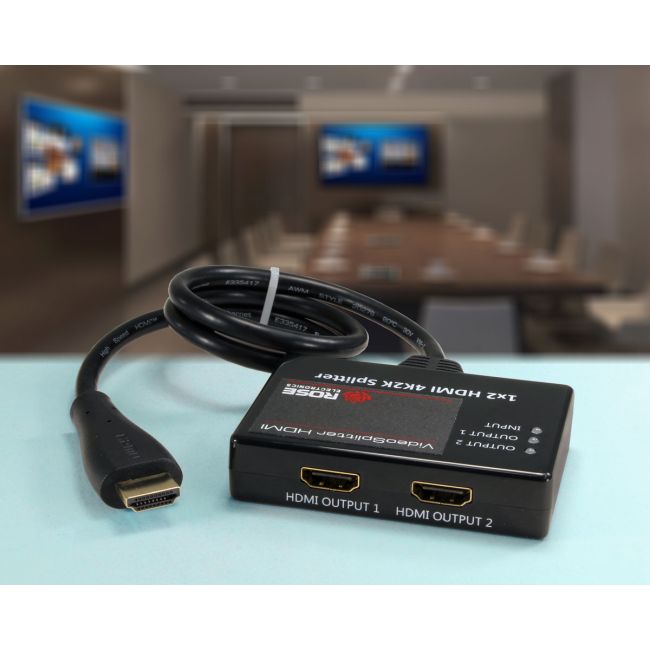

HDMI 2-port Video Splitter
he Rose Electronics VideoSplitter HDMI 4K PT is a versatile device that can be used in a variety of applications. It is ideal for classrooms, boardrooms, trade shows, exhibition displays, and digital signage. It enables simultaneous viewing of a single HDMI high definition video source between two HDMI displays or projectors.
The VideoSplitter HDMI 4K PT is easy to use. Simply connect the unit between the desired video source and destination displays and the unit is ready to use. No software installation is required.
The VideoSplitter HDMI 4K PT is powered by the HDMI video source and can function without an external power supply. When an (optional) external power supply is used, the splitter can send signals as far as 45ft away (15m).
Video resolutions up to 3840×2160@30 are transmitted to high-definition displays. Lower resolutions such as 1920×1200 are also supported. The unit is fully capable of handling HDR 36-bit per channel deep color and 3D video.
Audio is also well supported. The unit does not alter the HD multi-channel uncompressed audio that is embedded in the HDMI signal.
- Connect two HDMI monitors, projectors or LCD displays to a single HDMI video source
- Powered from the HDMI signal
- Ideal for classrooms, boardrooms, trade shows, exhibition displays, and retail advertising or display
- Supports 16:10 computer resolutions to 1920×1200@60Hz, and 16:9 video resolutions to 3840×2160@30Hz
- Video bandwidth to 340MHz per channel for a combined data rate of 10.2Gbps
- Supports 36-bit Deep Color and 3D video
- Supports HD multichannel uncompressed audio
- HDCP 1.4/2.2 compliant
- Built- in input cable eliminates need for extra cable
- Link LED’s for input and output video
- Gold plated HDMI connectors
SPECIFICATIONS
|
Dimensions (W x D x H) |
2.48" x 2.12" x 0.7" (83 x 54 x 18 mm) |
| Weight | 1.1 lb (0.5 kg) |
| Power | 90-240 VAC 50-60HzExternal adapter, +5VDC, 2AHDMI 2-port Video Splitter: 8W |
| Resolution | Progressive HDMI: 480p, 576p, 720p, 1080pInterlaced HDMI: 480i, 576i, 1080iComputer resolution: to 1920 x 1200Video Output: High Speed HDMI 1.3bVideo Bandwidth: 2.25Gbps/225MHzHDCP: 1.0/1.1 |
| Distance | Video: Attached HDMI cable 1.6 feet (0.5m)HDMI transmission: 45feet (15 m) |
| Connectors | Video: Output HDMI Type A(F)Video: Input HDMI Type A(M)Power: Barrel jack |
| Controls | Unit power: Green LEDVideo active: Green LED per port |
| Environment | Operating temperature: 32°F–158°F (0°C–70°C)Storage temperature: 14°F–176°F (-10°C–80°C)Relative humidity: 5%–90%, non-condensing |
| Artikelnummer | VS-1x2HDMI-4K/PT |
|---|
