Adjustable PWM fans with controller

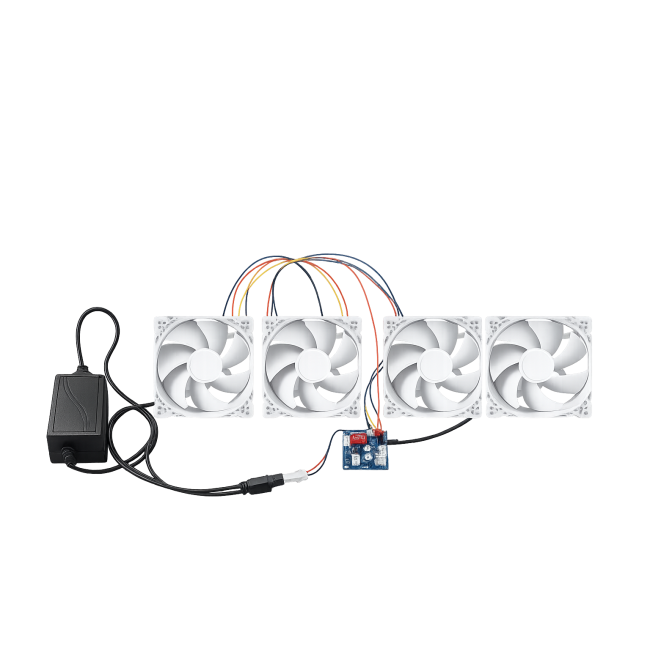

Adjustable PWM Fans with Controller:
PWM fan controller, DC 12V, 4-wire with thermostat; PWM regulator used as a fan speed controller with sensor; module board for temperature-based fan control.
PWM fan cables for up to 4 PWM fans with LED indicator are included.
Thermometer with temperature display, mounted depending on door type in the 19” cabinet either on a 19” 1U blanking panel or in the viewing door.
Images are for illustrative purposes only.
Adjustable PWM Fan with LED Display and Thermostat
Quiet continuous operation at 20% speed – ideal for acoustically optimized server cabinets
Automatic increase to 100% performance from approx. 35 °C – for reliable temperature control
PWM control with thermostat and sensor – no motherboard required, fully autonomous operation
LED display and temperature module – visual monitoring directly at the rack
Connection for up to 4 PWM fans – perfect for expansion or retrofitting
Axial fan with vapor bearing – durable, low-vibration, and especially quiet (28.3 dBA)
High airflow (101.24 m³/h) – efficient heat transfer with minimal noise
Compatible with all Lehmann acoustic variant cabinets – ready for immediate use
PWM Fan Control Settings:
The PWM fan runs continuously at 20% speed and reaches 100% speed at approximately 35 °C.
Technical Data of the PWM Fan:
Axial fan, DC
12V DC, 120 mm x 25 mm
Vapor bearing
Airflow: 101.24 m³/h
Noise level: 28.3 dBA
PWM, white
| SKU | 20156-PWM-LED |
|---|
