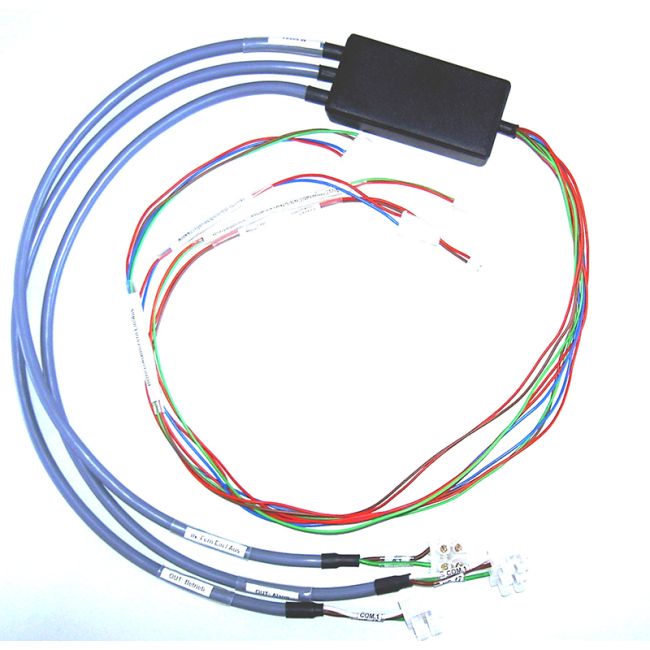

CompTrol Singnal 3 signal cable
CompTrol signal 3 is a signal cable with integrated potential-free change-over contacts in the housing ( supports up to 230V AC / 0.5 A) for forwarding an operation and fault signals to external systems. CompTrol signal 3 is suitable for connection to external and internal devices of the KX (S) - , FD (S) - and S ( X) - series. In addition to operating and alarm message can one indoor unit to the 230 V AC Contact remote-ON/OFF be switched. When connected to an external device (KX ( S)- series) , the forced mode , the Silent operation, a load reduction can also be connected (depending on the DIP switch on the outdoor unit ) or the emergency stop function with a 230 V AC input signal. In the FD ( S) - and S ( X) series can be connected to the signal CompTrol 3 cables only on the indoor unit. The signal cable contains all the necessary connectors for connection to the respective device board. All connections are marked on the respective lines . Not connectors used must not be cut off, as this may lead to short circuits. The total cable length of the signal cable is approximately 1.10 m.
SKU | CompTrol Singnal 3 |
---|
