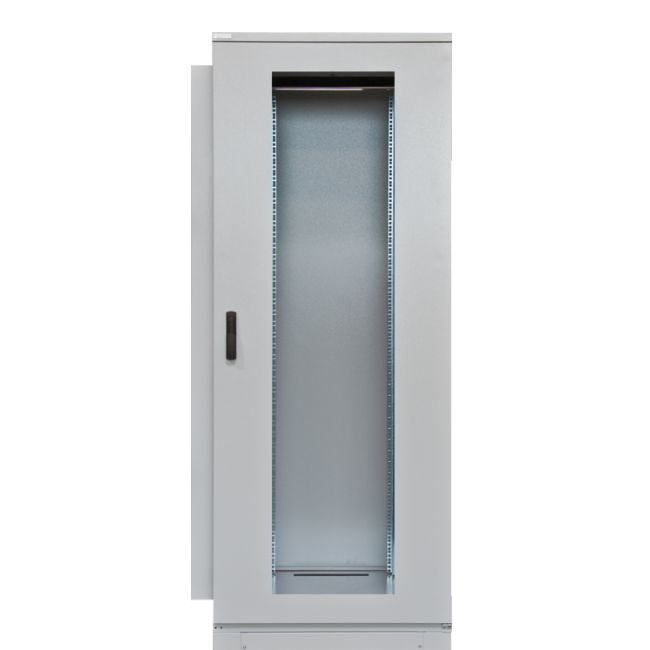

CoolRack CW water cooled 11,61 kW, 800 +150 mm x1200x2100

Direct -cooled server cabinet 42U consisting of a surface cooling unit in the rack with a cooling capacity of 11,61 kW

Cooling medium - cold water ( CW) -

• Description and technical data in the server enclosure:
• Base frame, welded, with revolving round and Slotted
• Static load capacity up to 1548 kg
• Infinitely depth-adjustable 19" mounting angles with 42 U
• Max. 19" mounting depth 780 mm
• 1 x glazed door with three-point locking and rotating lever handle, lockable, circumferential seal, 3 x reciprocal hinges with 180° opening angle
• 1 x door made ​​from solid steel with three-point locking and rotating lever handle, lockable, circumferential seal, 3 c reciprocal hinges with 180° opening angle
• 2 x side wall in inserting screws
• Base with leveling feet
• Removable hood with ventilation slots
• Removable cable entry panel
• Removable trim, side
• Roof module with cable inlet from brush strip
• Base module with cable inlet from brush strip
• Modesty panels and vertical airflow barrier between 19" mounting angles and side wall
• Powder coating RAL 7035, light gray
• Cooling Technology: Water cooling (cold water must be provided by the customer )
• Dimensions WxDxH 800 +150 mm x 1200 x 2100 mm ( Part No. * 8-12-42 )
• Dimensions WxDxH 800 +150 mm x 1000 x 2100 mm ( Part No. * 8-10-42 )
• Noise Version ( CoolRack Silent ) with an inner lining of acoustic foam ( Item No. CR-13- MW-G-8-12-42- A)

Description and technical data of the surface cooling device:
