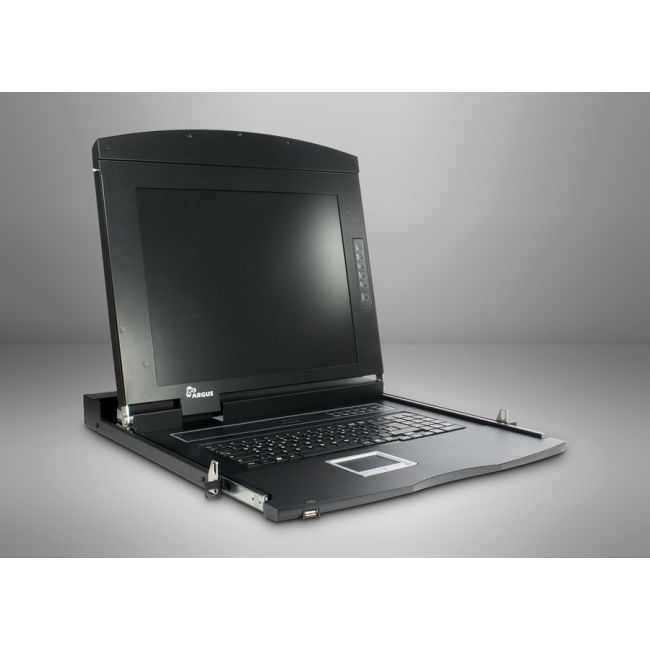

RackMaster 17" TFT-Display with 16 Port-KVM-Switch and OSD

Rack Master 17 "with 16-port Switch Keyboard: 99s Keyboard with Touchpad (QWERTY Keyboard)

• Monitor: 17 "TFT LED
• Maximum number of manageable PCs: 256
• Suitable for cabinets: 800-1000mm
• Connections: Module connection, Power
• Button: 12x KVM, 1x Power, 5x TFT menu
• Supported operating systems: No restrictions
• Switch modes: hotkey, OSD menu
• Switch scan time: 1-255s (OSD adjustable)
• DDC: Yes
• Resolution: 1920x1080
• Frequency range: 75Hz
• Brightness: 300lm
• Contrast: 1000: 1
• Power supply: External power supply
• Input: 12V, 5A
• Material: Corrosion resistant steel
• Operating temperature: -10 ° C ~ 60 ° C
• Storage temperature: -30 ° C ~ 70 ° C
• Humidity: 0-80%
• MBTF: Average 120,000 hours
• Net dimensions (H / W / D): 44.5 x 482 x 615mm
• Packaging dimensions (H / W / D): 190x610x715mm
• Net weight: 10.49 kg
• Gross weight: 18.80 kg

Delivery:

• KVM AS-71xx ULS
• Retail packaging
• 19 "rack set
• mounting tabs
• System cable DB15 to VGA  / USB (180cm)
• External power supply (Input: 110V-240V 60W Output: 12V 5A)
• power cable
• Quick Start Guide (German)
• Operating instructions on CD (German)
