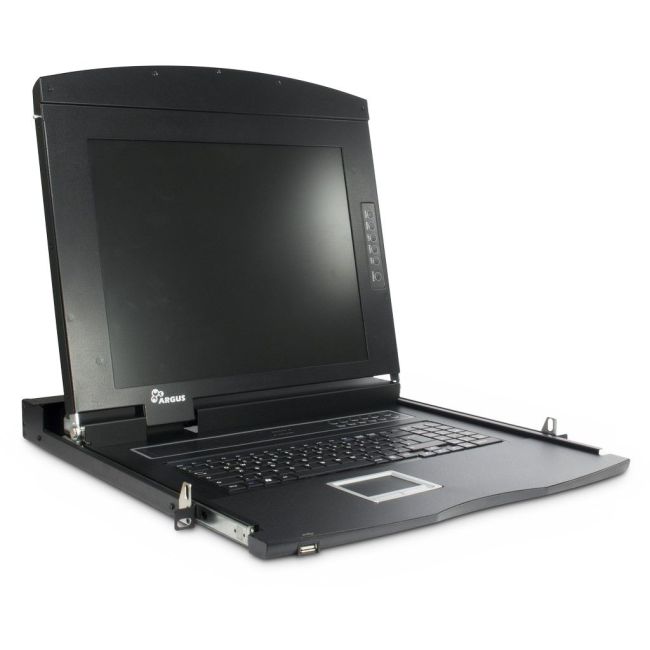

RackMaster 17" TFT-Display mit 8 Port-Cat5-KVM-Switch mit OSD
RackMaster including 8 port Cat5 KVM switch with OSD, 17 "TFT monitor German keyboard layout with touchpad supports USB. The connection of the console takes place via the supplied 8 piece system cable RJ45 to VGA / RJ45 / USB to the server thereby also longer cable distances are bridged without problems.
Delivery:
- Rackmaster
- 19 "rack set (cabinet depth 800-1000mm)
- mounting tabs
- 8 system cables
- External power supply
- power cable
- Quick Start Guide German
Characteristics:
- Password protection for keyboard and monitor
- USB port in the front for additional external mouse or keyboard
- 1 U
RackMaster including 8 port Cat5 KVM switch with OSD, 17 "TFT monitor, German keyboard layout with touchpad, supports USB. The connection of the console takes place via the supplied 8 piece system cable RJ45 to VGA / RJ45 / USB to the server. As a result, longer cable lengths are easily bridged. Scope of delivery: Rackmaster, 19 "rack set (cabinet depth 800-1000mm), mounting straps, 8 system cables, external power supply, power cable, quick start manual German
Characteristics:
- Password protection for keyboard and monitor, USB port in the front for additional external mouse or keyboard
- Keyboard: 99s keyboard with touchpad (QWERTY keyboard)
- Monitor: 17 "TFT LED
- Maximum number of manageable PCs: 256
- Suitable for cabinets: 800-1000mm
- Connections: Module connection, Power
- Button: 12x KVM, 1x Power, 5x TFT menu
- Supported operating systems: No restrictions
- Switch modes: hotkey, OSD menu
- Switch scan time: 1-255s (OSD adjustable)
- DDC: Yes
- Resolution: 1920x1080
- Frequency range: 75Hz
- Brightness: 300lm
- Contrast: 1000: 1
- Power supply: External power supply
- Input: 12V, 5A
- Material: Corrosion resistant steel
- Operating temperature: -10 ° C ~ 60 ° C
- Storage temperature: -30 ° C ~ 70 ° C
- Humidity: 0-80%
- MBTF: Average 120,000 hours
- Net dimensions (H / W / D): 44.5x482x615mm
- Packaging dimensions (H / W / D): 190x610x715mm
- Net weight: 10.17 kg
- Gross weight: 16,20 kg
- Packing unit: Shipping unit: 1 piece
- Warranty: 24 months
Delivery:
- KVM AS-7108 TLS
- Retail packaging
- 19 "rack set
- mounting tabs
- 8x system cable RJ45 to VGA / RJ45 / USB (15cm)
- External power supply (Input: 110V-240V 60W Output: 12V 5A)
- power cable
- Quick Start Guide (German)
- Operating instructions on CD (German)
SKU | 21700-38 |
---|---|
width | 19" |
U | 1 |
