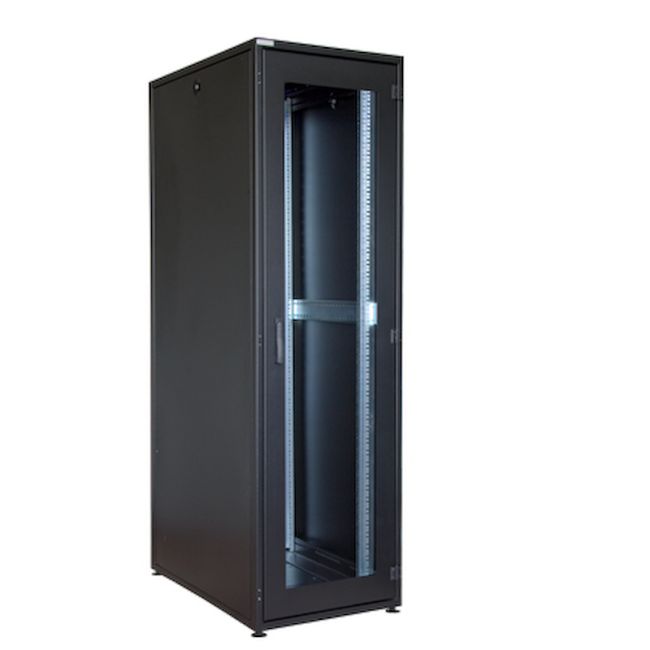

RZ Pro Rack IP54 with active ventilation by fans 600x1200x2100
42 U
- 600x1200x2100 mm (WxDxH)
- with active ventilation by fans
- IP54
RZ Pro Rack
Base frame, welded, with surrounding circular -and- Slotted
static load capacity up to 1548 kg
infinitely depth-adjustable 19" mounting angles with 42 U
max. 19" Depth 1040 mm
1x door with three-point locking and rotating lever handle, lockable
peripheral seal
3 reciprocal hinxges with 180° opening angle
1x door made of solid steel with three-point locking and rotating lever handle, lockable
circumferential sealing IP54
3x reciprocal hinges with 180° opening angle
2x sidewall inserting screws,
Base with leveling feet - with optional transport wheels
Removable hood with ventilation slots
Removable cable entry panel
removable trim panels
Roof module with cable inlet and two blow off fans, IP54
Base module with cable entry and two front fans blowing in and dust filters
Powder coating RAL 9005
jet black (also available: RAL7035, light gray Article No. RZ-G-xx.)
Weight incl. Packaging 170 kg (20 kg Pack.)
SKU | RZ-S-6-12-42V-IP54 |
---|---|
load-bearing capacity in kg | 1600 |
U | 42 |
width | 600 |
height | 2100 |
