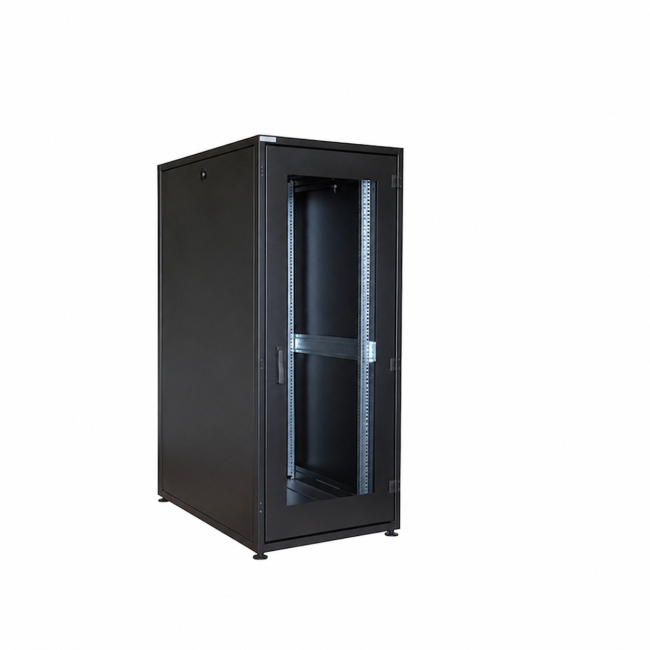

RZ Pro Rack IP54 with Active Ventilation via Fans 800x1000x1300

• RZ Pro rack base frame, welded, with continuous round‑ and slotted‑hole pattern, static load capacity up to 1548 kg

• Infinitely depth‑adjustable 19" mounting rails with 25U, maximum 19" installation depth of 840 mm

• One viewing door with three‑point locking system, swing handle, lockable, continuous sealing, three interchangeable hinges with 180° opening angle

• One full‑steel door with three‑point locking system, swing handle, lockable, continuous IP54 sealing, three interchangeable hinges with 180° opening angle

• Two side panels in plug‑in system, bolted

• Base with leveling feet and removable cover panel with ventilation slots, removable cable entry cover, removable side covers

• Roof module with cable entry and two exhaust fans, IP54

• Floor module with cable entry and two front‑intake fans and dust filters

• RAL9005 black

 • Dimensions in mm: 800×1000×1300

• Rack units: 25U
